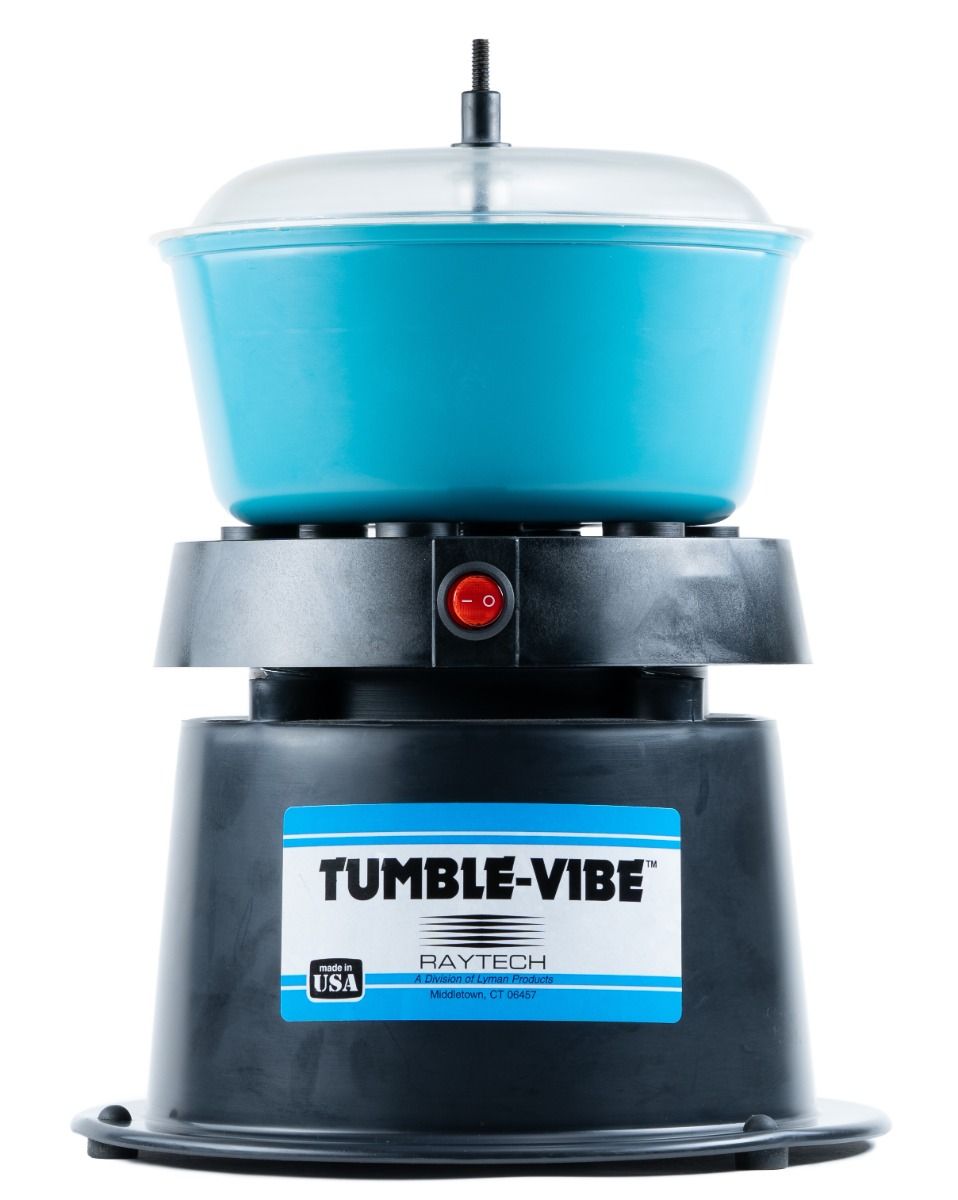

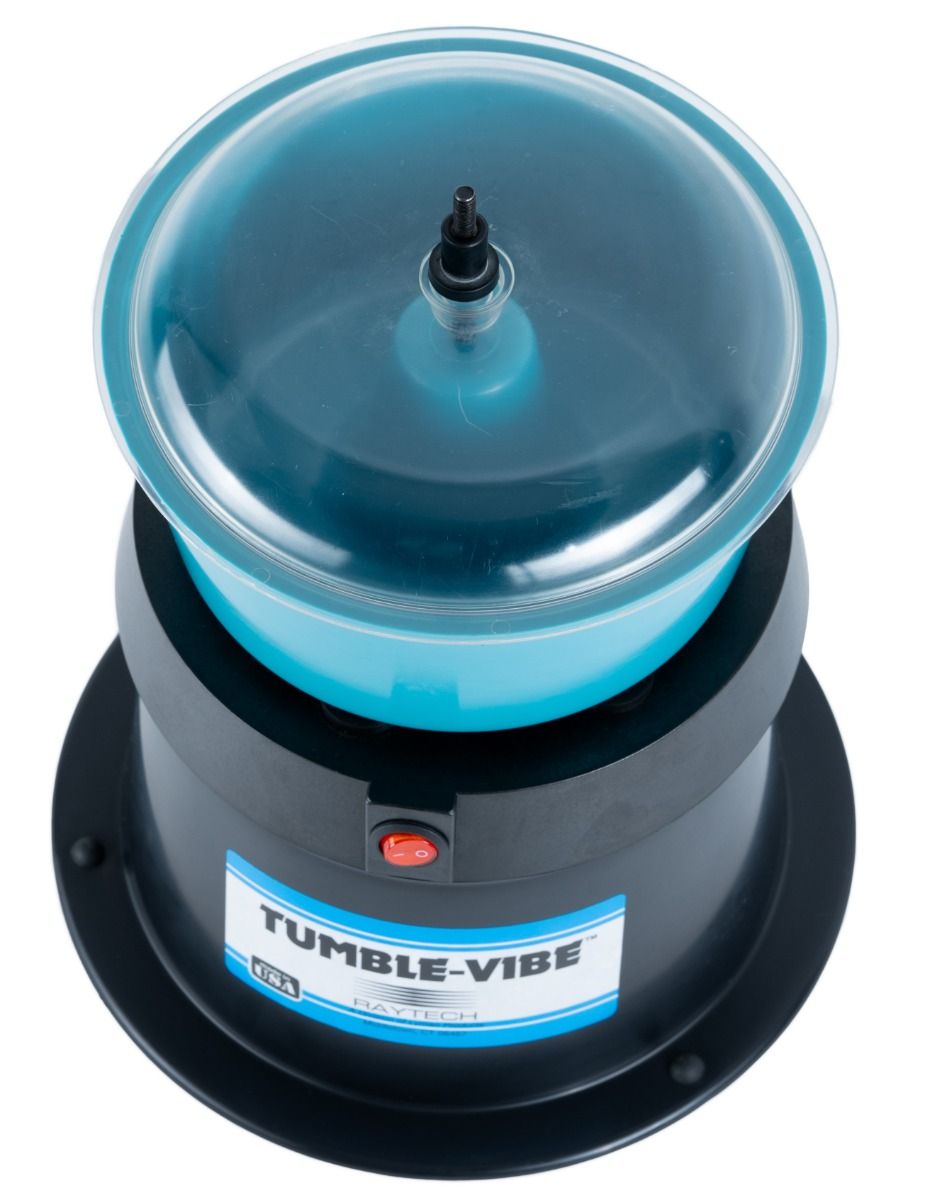

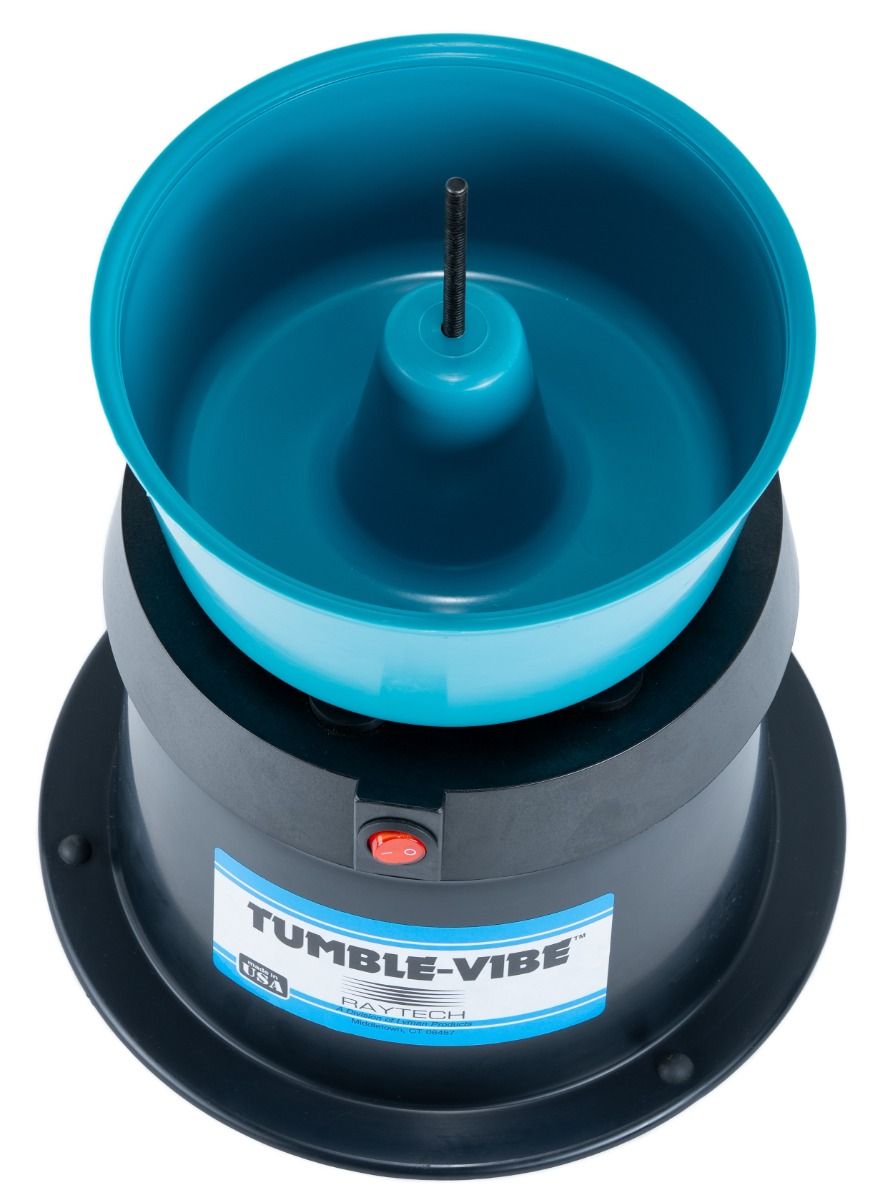

TV-5 Tumbler
Polishing metal and plastic parts
- Deburring metal stampings and machined parts
- Descaling metal castings
- Cutting radii on sharp edges of metal parts
- Polishing metal and plastic parts
- Favorite of hobbyists- holds up to 25 rings
- May also be used commercially
- Comes in 115V (Domestic) & 230V (International)
- Use for deburring of metal stampings and machined parts
- Descales metal casting
- CE CERTIFIED
- Rated Horsepower: 115v-0.07 and 230v-0.05
CLICK HERE FOR REPLACEMENT PARTS FOR TV-5
Please be certain you have selected the correct voltage for your location. United States typically uses 115V.
Your new Raytech Tumbler comes with a motorized base, one bowl and one lid. If the tumbler will be used for polishing as well as for cutting, always reserve one bowl strictly for the polishing step so that it will be free from embedded cutting grit. The working capacity of the Tumble-Vibe5 is approximately.05cu.ft. (or three pints) or 4 pounds. The capacity includes both the media and the work pieces. This popular economical and versatile unit is a favorite of hobbyists and is used commercially as well. The .05 cubic foot 8-inch bowl with solid lid holds 25 ring castings with media or will process about four pounds of rock. Do not run steel shot in this machine . Doing so will void the warranty. CE
Shipping weight 7 pounds, Shipping Volume 1.05 Cubic feet , 11 x 11 x 14”
This popular economical and versatile unit is a favorite of hobbyists and is used commercially as well. The .05 cubic foot 8-inch bowl with solid lid holds 25 ring castings with media or will process about four pounds of rocks.
WARNING: This product can expose you to lead, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov
| Part Number | 23001R ( 115V ) and 24106R ( 230V) |
|---|---|
| Motor | 115v 60Hz 0.9 Amps Wattage Power 50W / 230v is 50Hz 0.5 Amps Wattage Power 40W Noise level 82db |
| Best Use | Deburring metal stampings and machined parts |
| Helpful Hint | See Tech Tips |
| Unit Weight | 7lbs |
| Pack Carton Size | 1.05 Cubic feet |
| Box Measurements | 11 x 11 x 14” |
| Bowl Capacity Size | .05 Cubic ft holding 3 pints or 4 pounds (inclusive of media and work pieces) |
| Bowl Diameter | 8 Inches |
| Bowl Height To Lid | 3.75 Inches |
| Bowl Width To Shaft | 4 Inches |
